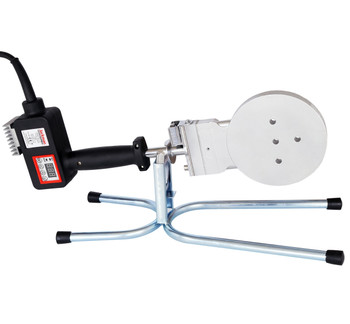

JAC-125 Socket Fusion Welder 1/2" (20mm) - 4" (110m)

JAC-125 Socket Fusion Welder 1/2" - 4" Capacity ND 20mm - 110mm

Hover over image to zoom

  • JAC-125 Socket Fusion Welder 1/2" - 4" Capacity ND 20mm - 110mm
  • Analog Thermometer
  • Digital Adjustable Temperature Regulator
  • Digital Temperature Display Screen
Jackman Fusion
$520.75
SKU:
JAC-125
Shipping:
Calculated at checkout

 Product Description

JAC-125 SOCKET FUSION WELDER 1/2" - 4" ND 20MM - 110MM



The JAC-125 is a Manual Socket Fusion Welder for heat fusing Socket Fusion style fittings and pipe. The JAC-063 has a working range from 20mm to 110mm and welds various materials including HDPE, MDPE, PPR, PP , PVDF and PB. The welder is composed of a heating plate, digital temperature control display screen, and a comfortable nylon plastic handle shell.

FEATURES

  • Analog Thermometer
  • Digital Adjustable Temperature Regulator (Factory Set at 500 Degree F)
  • 110/120 Volt Power
  • “RDY” and “HEAT” Indicator lamp

The analog thermometer on the welder is a helpful secondary measure to confirm and ensure temperature accuracy.

SUPPLIED WITH

  • Fork Support Stand
  • Bench Mount Clamp
  • Allen Wrench
  • Pin For Sockets.
  • Fusion Instruction Manual

Note: Heating Adapters Sold Separately.

Requires Metric heating adapters for welding Aquatherm, Niron and other metric sized piping.

SPECIFICATIONS

Working Temperature  392-534°F ± 1% (200-279° C ±1%)
Automatic Temperature Regulator 500° F
 Power Supply  110/120 V (60) 50 Hz
Rated Watt   1200W
Working Range   20mm - 110mm
Materials To Weld HDPE, MDPE, PPR, PP, PB, PVDF
Weight  7 lb
 Dimensions (LxWxH) 19" x 6" x 2.5"





JAC-125 Working Range

PPR / PP-RCT

NIRON and AQUATHERM

ND
(Inch)

Actual OD
(mm)

Actual OD
(Inch)

1/2"

20mm

0.79”

3/4"

25mm

0.98”

1”

32mm

1.26”

1-1/4”

40mm

1.57”

1-1/2”

50mm

1.97”

2”

63mm

2.48”

2-1/2”

75mm

2.95”

3”

90mm

3.54”

4”

110mm

4.33”

5”

125mm

4.92”






























Sockets Sold Separately.

2 Year Jackman Warranty.

Jackman Socket Fusion Machine Demo Video





Instruction Manual

Jackman Fusion Equipment www.jackmanfusion.com
