Delta 250 Trailer 2" - 8" Butt Fusion Machine ND 63mm - 200mm Easy Life

Delta 250 Trailer Butt Fusion Machine 2" - 8" 63mm - 200mm

Hover over image to zoom

  • Delta 250 Trailer Butt Fusion Machine 2" - 8" 63mm - 200mm
  • Ritmo Easy Life Delta 250 Process
  • Image 3
  • Image 4
Ritmo
Email or Call for a Quote!
SKU:
91065712

 Product Description

Delta 250 Trailer Butt Fusion Machine 2" - 8" ND 63mm - 200mm

Email or Call us for a Quote!

  • info@pprsupply.com
  • 218-461-9332

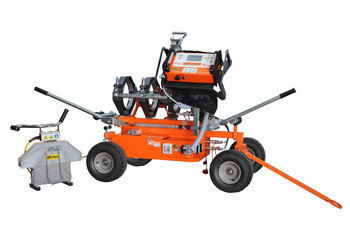

DELTA 250 TRAILER is an electro-hydraulic butt fusion machine with fusion capabilities ranging from 2” IPS to 8” DIPS ( 75 mm – 250 mm) pipe sizes. It is designed for in-field fusion of PPR pipe and fittings and other plastic pipes. Delta 250 is able to weld fittings like elbows, tees, Y - branches and flanges necks. Available in the 110 V and 230 V versions.

- Wheeled chassis for easy maneuvering on the jobs
- Machine body and control panel can be easily removed for in ditch use
- Working range: Ø 2" IPS - 8" DIPS ( 75 mm – 250 mm)
- Body machine with two working position: inclined or horizontal
- On board milling cutter with safety micro switch
- Automatic Fusion Control “EASY LIFE” SMARTLock inserts
- Lateral pipe lift aids in loading and unloading pipe

ON REQUEST (ACCESSORIES)
- Tool for flange necks
- Software for data download (data logging) with serial / USB cable



2 Year Ritmo Manufacturer Warranty



Specs:

Working range Ø 2" - 8" pipe (63 - 225 mm)
Overall cylinder section 1.45 in2 (9.36 cm2)
Weight 441 lbs (200 Kg)
Power supply 110V or 230 V, 50-60 Hz - 1 Ph
Maximum absorbed power 3810 W
Easy Life hydraulic unit 1100 W
Facer 710 W
Heater 2000 W
Pressure working range 0 - 2176 PSI (0 - 150 bar)
Heater working temperature 356 - 536° F (180 - 280°C)


WATCH A VIDEO ON THE RITMO EXCLUSIVE EASY LIFE CONTROL SYSTEM!
