Delta 500 All Terrain 6"- 20" Butt Fusion Machine ND 200mm - 500mm Easy Life

Delta 500 All Terrain Butt Fusion Machine 6"- 20" ND 200mm - 500mm

Email or Call us for a Quote!

• info@pprupply.com
• 218-216-6280

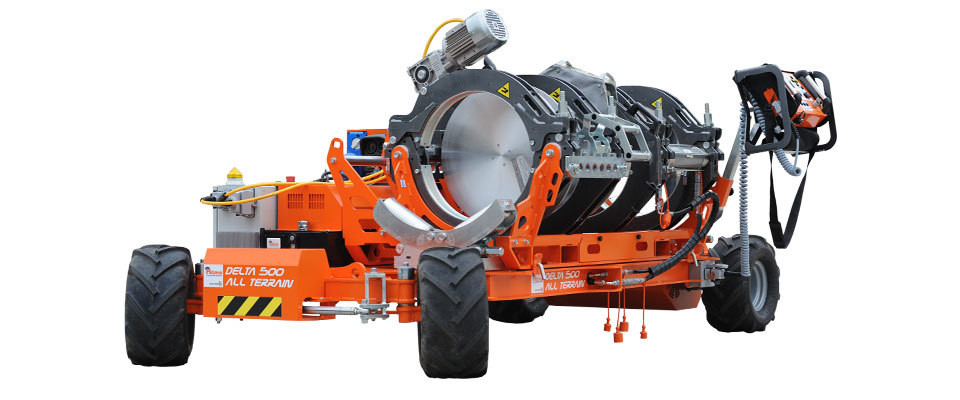

Self-Propelled All-Terrain Fusion Machine with EASY LIFE

DELTA 500 ALL TERRAIN is powered by a low-vibration diesel engine and equipped with front steering wheels and rear traction. The machine is suitable for welding pressure pipes (HDPE, PP) for the transportation of water, gas and other fluids up to 500mm or 20 "IPS

- Working range from 6" IPS to 20" IPS (200 to 500 mm)
- Welds fittings like elbows, tees, Y-branches and stub flanges
- New RITMO Patented assisted system to open/close/lift clamps-heater-facer
- Fast-locking system which allows to place and remove inserts in seconds
- Easy Life welding system
- GPS traceability
- Data-logging included
- Memory up to 4000 joint reports - downloadable straight into a PDF file
- USB port for firmware upgrade
- Intuitive control panel and large graphic display
- Machine body and on-board generator easily removable for working in tight spaces
- Machine can be powered using 230 V Three phase 50/60 Hz
- Wheeled chassis designed to be lifted using a forklift
- Two lateral rollers that can be operated by a cordless drill
- On-board electric facer that is equipped with a safety microswitch
- On-board generator removable for independent use

ON REQUEST (ACCESSORIES):
- Clamps’ inserts from 200 to 500 mm
- Tool for flange necks
- Kit for data transfer to printer ESC-POS
- HS ROLLERS 630

Specs:

WATCH A VIDEO ON THE RITMO EXCLUSIVE EASY LIFE CONTROL SYSTEM!
