Jackman Socket Fusion Welder Complete METRIC Set 1/2" (20mm) - 4" (110mm)

JAC-125 SOCKET FUSION WELDER 1/2" - 4" CAPACITY ND 20MM - 110MM

The JAC-125 is a Manual Socket Fusion Welder for welding Socket Fusion style fittings. The welder is composed of a heating plate, digital temperature control display screen, and a comfortable nylon plastic handle shell. The JAC-125 MM Complete Set provides you with the JAC-125 Welder along with all the tools and supplies you need to weld metric sizes 25mm - 110mm.

FEATURES

• Analog Thermometer
• Digital Adjustable Temperature Regulator (Factory Set at 500 Degree F)
• 110/120 Volt Power
• “RDY” and “HEAT” Indicator lamp

The analog thermometer on the welder is a helpful secondary measure to confirm and ensure temperature accuracy.

Everything you need to fuse 20mm - 110mm Socket Fusion fittings.

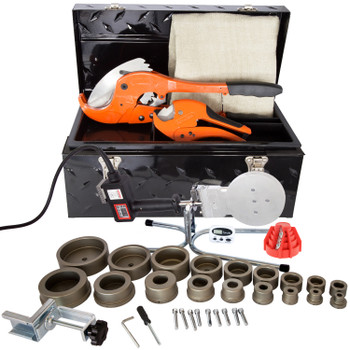

JAC-125 SOCKET FUSION SET INCLUDES:

• Jackman Socket Fusion Welding Heating Iron (Supplied with Fork Support Stand, Allen Wrench, and Pins for Sockets)


• Socket Heating Adapters : 20mm, 25mm , 32mm, 40mm , 50mm, 63mm, 75mm, 90mm , 110MM


• Multi Size Chamfer Tool ND 20mm - 63mm PP-RCT


• Large 22" Metal Storage Tool Box


• Work Bench Mounting Clamp


• Insulated Cold Weather Heating Bag


• 2" Ratcheting Pipe Cutter


• 1-1/4" Ratcheting Pipe Cutter


• Fusion Timer

Note: Works with Aquatherm, Niron and other metric sized piping.

SPECIFICATIONS

This set is equipped with everything you need to weld 20mm - 110mm, however The JAC-125 has a welding size range as listed below.

Sizes included in this set are listed in Red.

This machine could also socket fuse 125mm pipe and fittings. The optional 125mm socket fusion set is sold separately.

2 Year Jackman Warranty.

Jackman Socket Fusion Machine Demo Video

Instruction Manual



Jackman Fusion Equipment www.jackmanfusion.com
